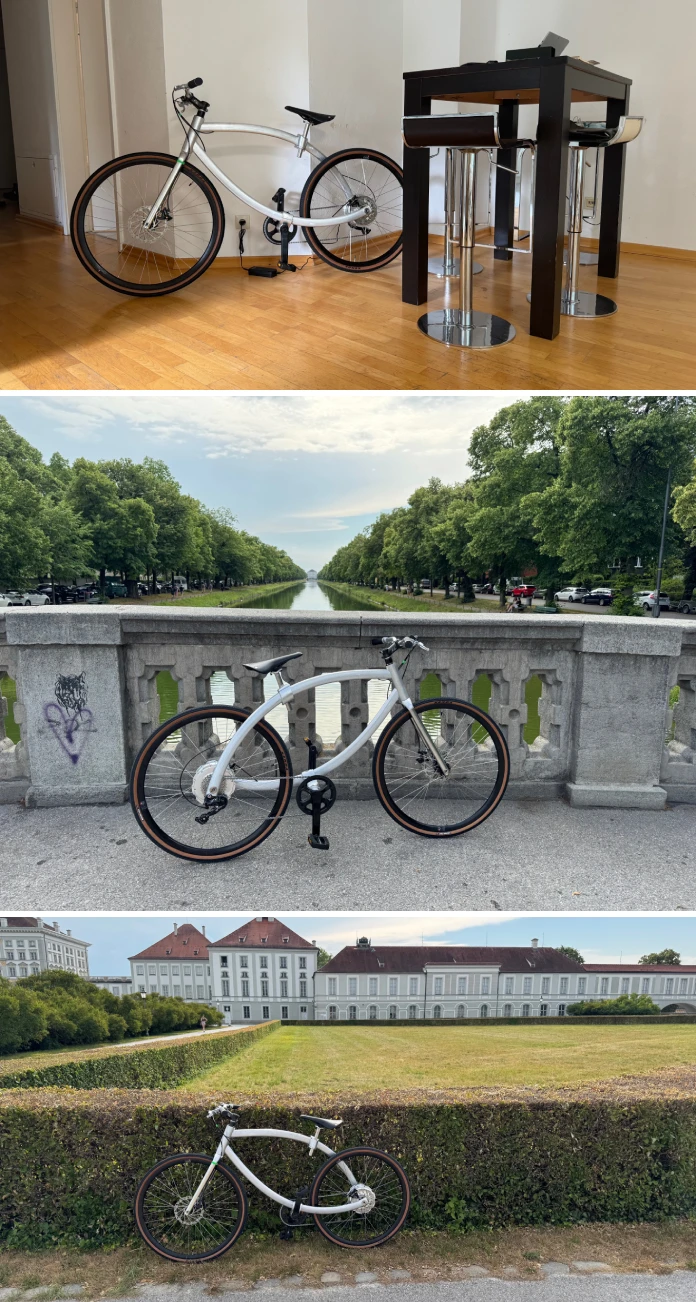

The NOVBYX e-bike has the most honest frame design I have seen on an electric bike in years. Filip Lacny wrote to WE AND THE COLOR with a simple pitch. He and his father Tadeusz are building an e-bike whose outline comes straight from its construction. I love projects like this. A father and son built a physical prototype around a frame that hides nothing.
Timing matters. The press kit sets the NOVBYX Kickstarter launch for September 2026, so the backing decision arrives about now. I have studied the press kit and the prototype photographs. I have not ridden the bike. This piece therefore judges design and documentation, not ride feel.
What Is the NOVBYX E-Bike, and How Does a Weld-Free Frame Work?
NOVBYX is a pre-production electric bicycle with what its makers call a patented frame architecture. Continuous structural profiles replace the usual set of welded tubes. Precision mechanical interfaces join those profiles. The press kit names the result a “continuous load path.”
A load path is the route a force takes through a structure. On a bike, force travels from the road through the wheels into the frame. From there it reaches your hands and your saddle. NOVBYX tries to smooth that route.
Why Welded Joints Matter
A standard diamond frame is a set of straight tubes that meet at junctions. Those junctions sit at the head tube, the seat tube, the bottom bracket, and the rear dropouts. Welders fuse each one. Heat changes the metal around every weld, and fatigue cracks in metal frames often start in that zone. The press kit marks four such areas in red on its comparison drawing.
How NOVBYX Builds the Frame Without Them

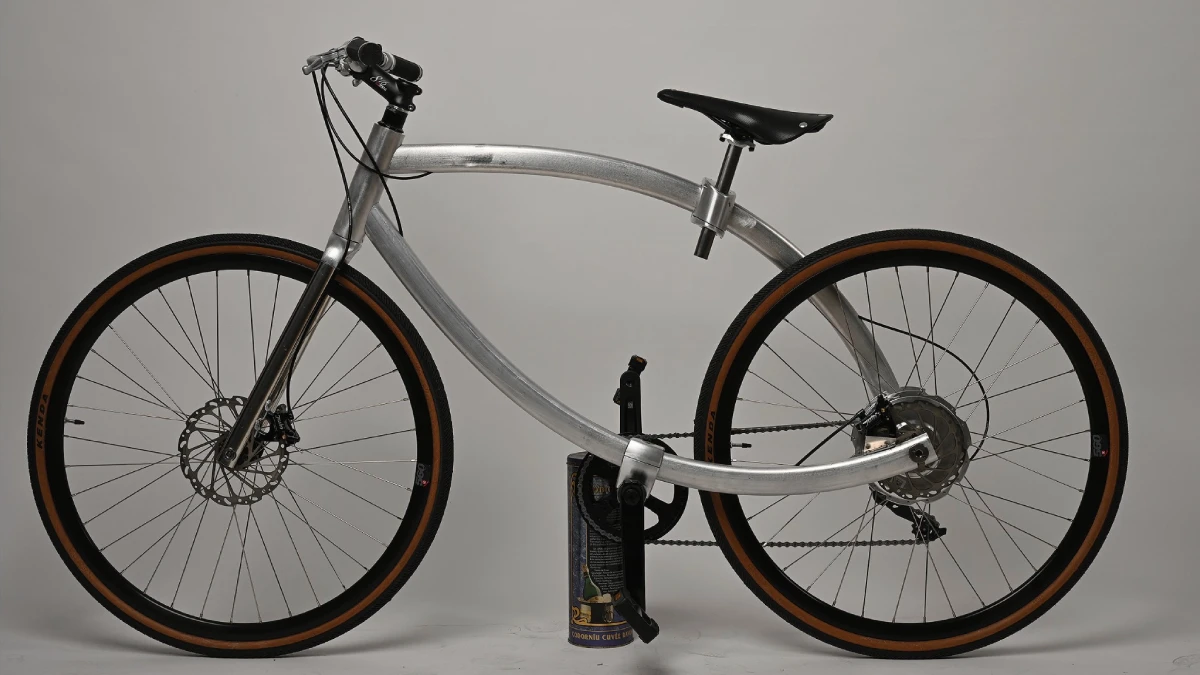

The NOVBYX drawings show long, sweeping elliptical profiles instead of straight tubes. They run from the head tube toward the rear axle and pass the bottom bracket on the way. Clamping interfaces join the pieces. The fork stays a separate part.
The NOVBYX team describes the goal as a radically simplified frame. Fewer structural components mean less assembly work. That claim makes sense on paper. It also shifts the burden to the interfaces, which now carry what the welds used to carry.
Structural Silhouette: Two Terms for What NOVBYX Attempts
I needed a name for this idea, so I coined two. A structural silhouette is an outline that matches the main load path. No cover or fake tube sits between the structure and your eye.
Silhouette debt is the opposite. It builds up when designers hide a conventional frame behind covers and styled shrouds. Every disguise adds parts, and each part needs a reason to exist.
My first thesis says a bicycle earns its silhouette only when removing the outline would remove the structure. Most e-bikes fail that test. Their outline is a costume over a diamond frame.
Other makers took another route. The Faraday Porteur, an early Kickstarter success, tucked its battery cells inside the frame tubing. That design hides the electric part on purpose. NOVBYX shows its structure and hides less, at least in the drawings. It also integrates a 10 Ah battery, and the press kit does not say where that battery sits.
The Honest Frame Test: Four Checks Before You Trust a Bold Shape
Shape alone proves nothing about strength. I use four checks on any frame with an unusual outline. Call it the Honest Frame Test.
- Path. Can you trace the load from the headset to the dropout with one finger? NOVBYX passes on the drawings.
- Joints. How many joints exist, and what kind? The welds are gone, yet every clamp still counts as a joint.
- Service. Can an owner replace a single part? The press kit promises long-term serviceability but shows no parts list.
- Proof. Does a lab report exist? ISO 4210 covers bicycles, and EN 15194 covers electrically power-assisted cycles. NOVBYX shows no results under either yet.
NOVBYX scores well on the first check and unknown on the last. That is a fair place for a pre-production project. It is a poor place for a shipping product.
What the NOVBYX Specs Tell You (and What They Leave Out)
The NOVBYX press kit lists a compact spec sheet. A P160 all-in-one rear hub motor delivers 250 W rated and 400 W peak power. Torque reaches 35 Nm. The 250 W rating matches the continuous power limit for e-bikes in the European Union.
A hub motor also leaves the NOVBYX bottom bracket area clean. That helps a frame built around smooth profiles. Still, 35 Nm is modest. It suits flat cities and gentle commutes. Riders in hilly towns will want more.
The NOVBYX drivetrain is a Shimano CUES U6000 with LINKGLIDE in a 1×10 setup. Shimano Deore M6100 hydraulic disc brakes handle stopping. Shimano positions LINKGLIDE around longer component life. These are sensible, replaceable parts, and they fit a maker who talks about serviceability.
Battery, Range, and Weight
The NOVBYX battery is a 10 Ah integrated lithium pack. The press kit gives no voltage. At 36 V, 10 Ah would equal 360 Wh, but that is my arithmetic, not a claim from the makers. The press kit lists no range figure either. Any range number you read elsewhere lacks a source.
Then comes weight. The NOVBYX target of about 3.0 kg covers the frame profiles, the fork, and the clamping interfaces. It excludes wheels, motor, battery, and components. The press kit never names the frame material, so the number has no benchmark. Filip should publish that detail first.
The Patent Question Behind NOVBYX
The NOVBYX press kit cites European patent document EP 2 944 554 A1, titled “Bicycle with a one-piece bicycle frame.” Two details deserve a question to the team.
First, the suffix A1 marks a published application. Granted European patents carry B1. So “patented” needs a register extract to back it up. Second, the title says “one-piece frame,” while the press kit describes profiles joined by interfaces. Those two ideas sit apart, and I want to see how the claims map onto the prototype.
Curved single-piece frames also have a long paper trail. US patent 4,838,569 already describes a one-piece resilient frame with a generally elliptical shape. The ellipse is old. The novelty here would lie in the profiles, the interfaces, and the e-bike package around them.
NOVBYX Timeline, Price, and the Founders Series
The press kit shows seven stages. NOVBYX finished design and structural validation. Engineering and tooling development. The NOVBYX prototype took shape in 01/2026, and testing and technical validation are active. The kit then sets the Kickstarter launch for 09/2026, serial production for 10/2026, and global parcel shipping for 12/2026. Filip’s email says production and delivery dates remain unconfirmed.
The first 77 bikes form the NOVBYX Founders Series. Each one carries a permanently engraved number from 01 to 77. The website calls this tier the Signature 77 Series. It lists a Kickstarter production price of $2,599 against a $3,499 retail price. Tiers can change, so check the live campaign.
The site also claims 146.8 kg CO₂e for NOVBYX against 192.9 kg for a conventional e-bike. That is a 23.9 percent cut, and the arithmetic checks out. The method behind both figures still needs a look.
Four Predictions for Weld-Free E-Bike Frames
Here is where I expect the weld-free e-bike frame to go.
- A lab report decides everything. If NOVBYX publishes fatigue results under ISO 4210 or EN 15194 procedures, the skeptics go quiet. Without a report, the press will keep asking.
- Small makers copy the method first. Big brands move slowly on new frame architectures. Boutique builders of city e-bikes will test profile-and-clamp designs within two years.
- Serviceability becomes a sales pitch. A frame with replaceable parts speaks to repair-minded buyers. Other brands will copy that message before they copy the shape.
- The December shipping date slips. NOVBYX testing is still active, and the kit sets shipping for 12/2026. I expect first deliveries in 2027.
Who Should Back the NOVBYX E-Bike, and Who Should Wait?
Back NOVBYX if the idea excites you and you accept the risk. A crowdfunding pledge is a good-faith promise, not a purchase. Electrek’s guide to crowdfunded e-bike brands makes the same point and adds that outright failures are rare.
Designers get the most from NOVBYX. The frame offers a clear case study in structure driving form. Collectors of numbered editions have an obvious target in the 77 Founders bikes.
Wait if you need lab data before you pay. Riders in steep cities should also hold off, because 35 Nm is modest. Range buyers have nothing to check either. The press kit lists no range figure at all.
NOVBYX at a Glance
| Attribute | Detail | Status |
|---|---|---|
| Product | Pre-production e-bike with a weld-free primary frame | Prototype built 01/2026 |
| Makers | Filip Lacny and Tadeusz Lacny, with engineering support from Lacny Engineering GmbH | Stated in press kit |
| Frame concept | Continuous elliptical profiles with precision mechanical interfaces | Patent number cited, register entry unconfirmed |
| Motor | P160 all-in-one rear hub, 250 W rated, 400 W peak, 35 Nm | Makers’ figures |
| Battery | 10 Ah integrated lithium pack | Voltage and range not stated |
| Drivetrain | Shimano CUES U6000 LINKGLIDE 1×10 | Stated in press kit |
| Brakes | Shimano Deore M6100 hydraulic disc | Stated in press kit |
| Wheels | 700C | Stated in press kit |
| Frame weight | About 3.0 kg for profiles, fork, and clamping interfaces | Target, not measured |
| Founders Series | 77 numbered bikes, engraved 01 to 77 | First Kickstarter tier |
| Listed price | $2,599 Kickstarter, $3,499 retail | From the website, verify before backing |
| Timeline | Kickstarter 09/2026, production 10/2026, shipping 12/2026 | Not confirmed by the makers |
| Test status | Testing and technical validation active | No public report |
Common Questions About the NOVBYX E-Bike
What is the NOVBYX e-bike?
NOVBYX is a pre-production e-bike from Filip and Tadeusz Lacny. Its primary frame uses continuous structural profiles and precision mechanical interfaces instead of welded joints.
Does the NOVBYX e-bike have any welds?
The NOVBYX press kit describes a weld-free primary frame. It does not address every other part, such as the fork or small brackets. Ask the team for a full list.
How powerful is the NOVBYX e-bike?
The P160 rear hub motor delivers 250 W rated power, 400 W peak power, and 35 Nm of torque. The battery holds 10 Ah. Voltage and range remain unpublished.
How much does the NOVBYX e-bike cost?
The website lists a Kickstarter price of $2,599 and a retail price of $3,499. Tiers can change, so check the live campaign before you pledge.
When will the NOVBYX e-bike ship?
The NOVBYX press kit targets global parcel shipping in 12/2026. The makers state that production and delivery dates remain unconfirmed.
Is it risky to back the NOVBYX e-bike?
Yes, as with any pre-production project. No independent test report is public, and testing is still active. Delays are possible, and a pledge carries no guarantee of delivery.
What is the NOVBYX Founders Series?
The Founders Series covers the first 77 bikes. Each one carries a permanently engraved number from 01 to 77. The press kit close-up shows NOVBYX-001 cut into the frame profile.
All images © NOVBYX. Don’t hesitate to browse WE AND THE COLOR’s Product Design section for more.
